DESCRIPTION

Basic Info.

Model NO.	Dl380
Supporting Memory Capacity	32GB
Number of CPU Threads	20
Instruction System	RISC
Platform	PC Workstation
Specification	44.55 x 73.03 x 8.74cm
Origin	China
HS Code	8471509000
Production Capacity	20pieces/Week

Product Description

1. The HPE ProLiant DL380 Gen10 server has a flexibly expandable chassis, offering the new HPE modular hard drive backplane as a configurable option, supporting up to 30 2.5" small drives, 19 3.5" large drives, or 20 NVMe drives Option to support up to 3 double-wide GPUs simultaneously.2. The combination of HPE DC persistent memory and DRAM can create fast, high-capacity, and low-cost memory and storage devices, enabling fast data storage, movement, and processing, thereby helping to transform big data workloads and analytics.3. Combined with the integrated SATA HPE Dynamic Smart Array Controller S100i to meet boot, data and media needs, the redesigned HPE Smart Array Controller allows users to flexibly choose a 12Gb/s controller that is more suitable for customer environments, while supporting SAS interfaces and HBA mode.4. The security recovery function allows the server firmware to fall back to the last normal state or factory settings when bad code is detected.5. Through intelligent system optimization technology innovation, HPE servers can use custom configuration files to adjust internal resources, optimize workload performance, and provide enhanced performance for all workloads, including latency-sensitive loads, such as latency mitigation for high-frequency trading.

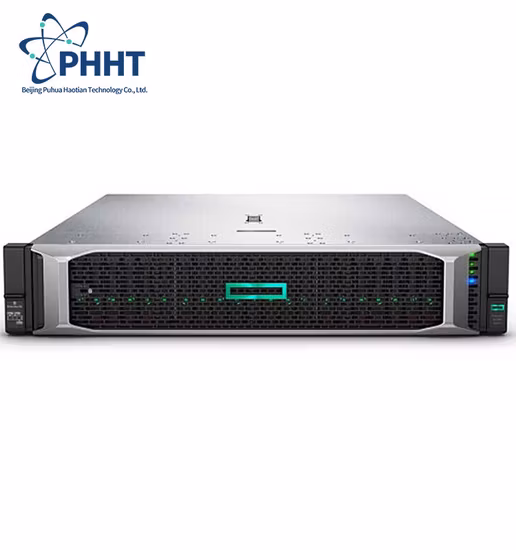

product name	HPE ProLiant DL380 Gen10
processor	Intel® Xeon® Scalable Processor 8100 Series
	Intel® Xeon® Scalable Processor 6100 Series
	Intel® Xeon® Scalable Processor 5100 Series
	Intel® Xeon® Scalable Processor 4100 Series
	Intel® Xeon® Scalable Processor 3100 Series
Number of processors	1 or 2
Available processor cores	28/26/24/22/20/18/16/14/12/10/6/4
processor cache	8.25MB L3
	11.00 MB L3
	13.75MB L3
	16.50MB L3
	19.25MB L3
	22.00 MB L3
	24.75MB L3
	27.50MB L3
	30.25 MB L3
	33.00 MB L3
	35.75MB L3
	38.50MB L3
processor speed	Up to 3.6GHz, depending on processor
Power Type	2 flexible slot power supplies
Expansion slot	8. Please refer to QuickSpecs for specific description
Memory	3.0TB, single 128GB DDR4
memory slot	24DIMM, optional 12 NVDIMM memory
memory type	HPE DDR4 Smart Memory
System Fan Performance	Hot-swappable redundant fans, standard
network controller	Standard HPE 1Gb 331i 4-port Ethernet adapter, optional FlexibleLOM slot controller, according to different models
storage controller	HPE Smart Array S100i or HPE Smart Array Controller, supports Raid 0/1/10/5/50/6/60, Raid 1/10 ADM,
	Depends on the adapter model
Minimum size (W x D x H)	44.55 x 73.03 x 8.74cm
weight	14.76kg
